Selenium WebDriver - Page Object Model

---

---

The test cases developed using Selenium Webdriver can be improved by adopting design patterns in the automated tests. Page Object Model (also known as POM) is one most commonly used design pattern which can be used to create automated tests with Selenium Webdriver.

What is a Page Object Model?

Page Object Model is a design pattern which is adopted in Selenium test case development for segregation of the web elements and test cases in different class files. A page object is similar to an object oriented class which is similar to an interface of the application under test.

The actual test cases make use of the methods of the object classes to interact with the web application. After a test case has been developed, in future if any property of the web elements get changed, then necessary changes would only need to be made at the page object level and not at the test case level.

Likewise, if a new web element has been added to a web page in application, that should be first added to the one and only dedicated place where all the objects are declared at the page level.

While designing test cases based on Page Object Model, each page in the application is considered as a separate class file. Within that independent class file, all the web elements specific to that page, will be available.

Verifications and Assertions for a test case are maintained in the particular test class file and not on the page object class file. Thus there is no interdependence between any class files.

Benefits of Using Page Object Model

The benefits of using a Page Object Model are listed below −

• There is a proper distinction among code written for test cases, features specific to a page, locators for the web elements, and so on.
• Page Object Model provides something similar to an object repository, where all the web elements and the actions to be performed on them are stored at a particular place, rather than being declared in multiple places within the test cases.
• In case, a change in property of a web element is seen, modifications specific to that element need to be made only at a single place, rather than multiple places. Thus it is easy for maintenance purposes.
• As separate and independent class files are maintained, the test code developed for a page, can be reused for another test case. Hence saving a lot of resources.
• As separate and independent class files are developed as per the web pages on the application, it makes the code very readable and clean by just going through the class files.
• Every distinctive web element is declared only once.

Example

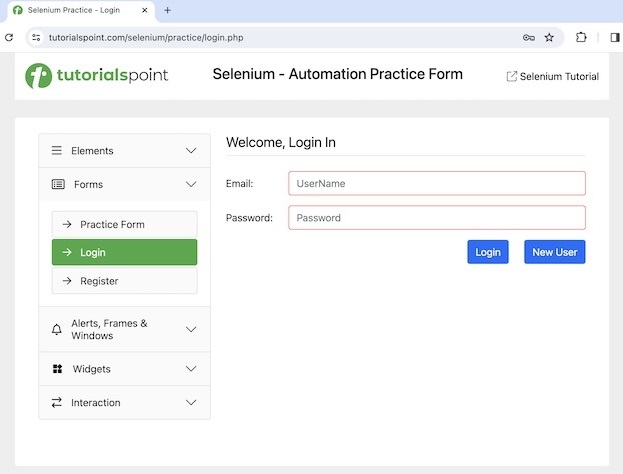

Click on the New User button on the Welcome Page.

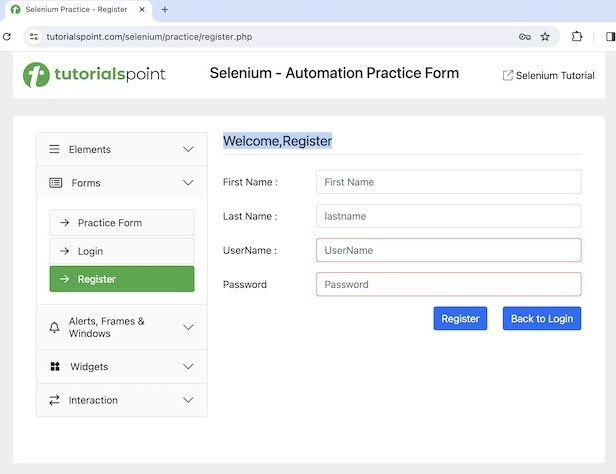

After clicking New User, we would navigating to the Registration page, with text Welcome, Register.

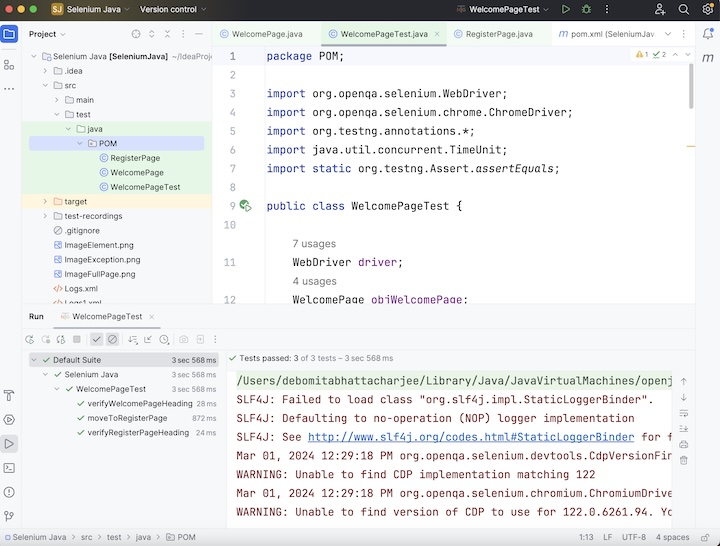

Here, we would have the page classes - WelcomePage.java and RegisterPage.java which would contain web elements on these two pages and actions on those elements. We would also have the test class - WelcomePageTest.java which would be the actual test case, and also assertions related to the test case. All the test classes reside within the same POM package.

Code Implementation on page class WelcomePage.java.

package POM;

import org.openqa.selenium.By;
import org.openqa.selenium.WebDriver;

public class WelcomePage {
   WebDriver driver;
   By text = By.xpath("//*[@id='signInForm']/h1");
   By btn = By.xpath("//*[@id='signInForm']/div[3]/a");
   public WelcomePage(WebDriver driver) {
      this.driver=driver;
   }
   public String verifyPageHeading() {
      String getHeadtext = driver.findElement(text).getText();
      return  getHeadtext;
   }
   public void clickOnNewUser() {
      driver.findElement(btn).click();
   }
}

Code Implementation - RegisterPage.java.

package POM;

import org.openqa.selenium.By;
import org.openqa.selenium.WebDriver;

public class RegisterPage {
   WebDriver driver;
   By text = By.xpath("//*[@id='signupForm']/h1");
   public RegisterPage(WebDriver driver) {
      this.driver=driver;
   }
   public String verifyPageHeading() {
      String getHeadtext = driver.findElement(text).getText();
      return  getHeadtext;
   }
}

Code Implementation - WelcomePageTest.java.

package POM;

import org.openqa.selenium.WebDriver;
import org.openqa.selenium.chrome.ChromeDriver;
import org.testng.annotations.*;
import java.util.concurrent.TimeUnit;
import static org.testng.Assert.assertEquals;

public class WelcomePageTest {
   WebDriver driver;
   WelcomePage objWelcomePage;
   RegisterPage objRegisterPage;
   @BeforeTest

   public void setup() {

      // Initiate the Webdriver
      driver = new ChromeDriver();

      // adding implicit wait of 12 secs
      driver.manage().timeouts().implicitlyWait(10, TimeUnit.SECONDS);

      // Opening the webpage
      driver.get("https://www.tutorialspoint.com/selenium/practice/login.php");
   }
   @Test(priority = 1)
   public void verifyWelcomePageHeading() {

      // object of WelcomePage page class
      objWelcomePage = new WelcomePage(driver);
      String text = objWelcomePage.verifyPageHeading();
      System.out.println("Page heading in Welcome Page: " + text);

      // assertions to test case
      assertEquals("Welcome, Login In", text);
   }
   @Test(priority = 2)
   public void moveToRegisterPage() {
      objWelcomePage = new WelcomePage(driver);
      objWelcomePage.clickOnNewUser();
   }
   @Test(priority = 3)
   public void verifyRegisterPageHeading() {

      // object of RegisterPage page class
      objRegisterPage = new RegisterPage(driver);
      String text = objRegisterPage.verifyPageHeading();
      System.out.println("Page heading in Register Page: " + text);

      // assertions to test case
      assertEquals("Welcome,Register", text);
   }
   @AfterTest
   public void teardown() {
      // quitting browser
      driver.quit();
   }
}

Dependencies in pom.xml.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
   http://maven.apache.org/xsd/maven-4.0.0.xsd">
   <modelVersion>4.0.0</modelVersion>

   <groupId>org.example</groupId>
   <artifactId>SeleniumJava</artifactId>
   <version>1.0-SNAPSHOT</version>

   <properties>
      <maven.compiler.source>16</maven.compiler.source>
      <maven.compiler.target>16</maven.compiler.target>
      <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
   </properties>

   <!-- https://mvnrepository.com/artifact/org.seleniumhq.selenium/selenium-java -->
   <dependencies>
      <dependency>
         <groupId>org.seleniumhq.selenium</groupId>
         <artifactId>selenium-java</artifactId>
         <version>4.11.0</version>
      </dependency>

      <!-- https://mvnrepository.com/artifact/org.testng/testng -->
      <dependency>
         <groupId>org.testng</groupId>
         <artifactId>testng</artifactId>
         <version>7.9.0</version>
         <scope>test</scope>
      </dependency>
   </dependencies>
</project>

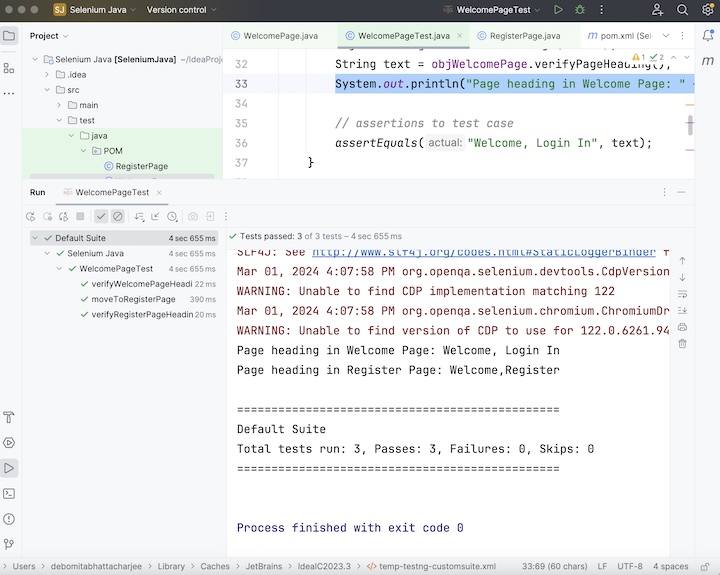

Output

Page heading in Welcome Page: Welcome, Login In
Page heading in Register Page: Welcome,Register
===============================================
Default Suite
Total tests run: 3, Passes: 3, Failures: 0, Skips: 0
===============================================

Process finished with exit code 0

Here, we had first identified the elements on Welcome and Register pages and performed actions on those web elements inside the page classes - WelcomePage.java and RegisterPage.java.

Inside the test class WelcomePageTest.java, we had created objects of the page classes to have the complete flow of the test case with assertions.

We had used the TestNG test framework to implement the Page Object Model and retrieved the page headers with the message in the console - Page heading in Welcome Page: Welcome, Login In and Page heading in Register Page: Welcome,Register.

The output in the console shows Total tests run: 3, since there are three methods having the @Test annotations - verifyWelcomePageHeading(), moveToRegisterPage(), and verifyRegisterPageHeading().

Finally, the message Passes: 3, and Process finished with exit code 0 was received, signifying successful execution of the code.

Conclusion

This concludes our comprehensive take on the tutorial on Selenium Webdriver Page Object Model. Weve started with describing a Page Object Model and walked through the benefits of a Page Object Model, and an example illustrating how to use it along with Selenium. This equips you with in-depth knowledge of the Page Object Model. It is wise to keep practicing what youve learned and exploring others relevant to Selenium to deepen your understanding and expand your horizons.
