Spring Boot - Actuator



Spring Boot Actuator provides secured endpoints for monitoring and managing your Spring Boot application. By default, all actuator endpoints are secured. In this chapter, you will learn in detail about how to enable Spring Boot actuator to your application.

Enabling Spring Boot Actuator

To enable Spring Boot actuator endpoints to your Spring Boot application, we need to add the Spring Boot Starter actuator dependency in our build configuration file.

Maven users can add the below dependency in your pom.xml file.

<dependency>
   <groupId>org.springframework.boot</groupId>
   <artifactId>spring-boot-starter-actuator</artifactId>
</dependency>

Gradle users can add the below dependency in your build.gradle file.

compile group: 'org.springframework.boot', name: 'spring-boot-starter-actuator'

In the application.properties file, we need to disable the security for actuator endpoints.

management.security.enabled = false

YAML file users can add the following property in your application.yml file.

management:
   security:
      enabled: false

If you want to use the separate port number for accessing the Spring boot actutator endpoints add the management port number in application.properties file.

management.port = 9000

YAML file users can add the following property in your application.yml file.

management:
   port: 9000

Now, you can create an executable JAR file, and run the Spring Boot application by using the following Maven or Gradle commands.

For Maven, you can use the following command −

mvn clean install

After BUILD SUCCESS, you can find the JAR file under the target directory.

For Gradle, you can use the following command −

gradle clean build

After BUILD SUCCESSFUL, you can find the JAR file under the build/libs directory.

Now, you can run the JAR file by using the following command −

java jar <JARFILE>

Now, the application has started on the Tomcat port 8080. Note that if you specified the management port number, then same application is running on two different port numbers.


  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/

[32m :: Spring Boot :: [39m              [2m (v3.3.3)[0;39m

[2024-09-12T15:56:49Z] [org.springframework.boot.StartupInfoLogger] [main] [50] [INFO ] Starting DemoApplication using Java 21.0.3 with PID 9056 (E:\Dev\demo\target\classes started by Tutorialspoint in E:\Dev\demo)
[2024-09-12T15:56:49Z] [org.springframework.boot.SpringApplication] [main] [654] [INFO ] No active profile set, falling back to 1 default profile: "default"
[2024-09-12T15:56:50Z] [org.springframework.boot.web.embedded.tomcat.TomcatWebServer] [main] [111] [INFO ] Tomcat initialized with port 8080 (http)
[2024-09-12T15:56:50Z] [org.apache.juli.logging.DirectJDKLog] [main] [173] [INFO ] Initializing ProtocolHandler ["http-nio-8080"]
[2024-09-12T15:56:50Z] [org.apache.juli.logging.DirectJDKLog] [main] [173] [INFO ] Starting service [Tomcat]
[2024-09-12T15:56:50Z] [org.apache.juli.logging.DirectJDKLog] [main] [173] [INFO ] Starting Servlet engine: [Apache Tomcat/10.1.28]
[2024-09-12T15:56:50Z] [org.apache.juli.logging.DirectJDKLog] [main] [173] [INFO ] Initializing Spring embedded WebApplicationContext
[2024-09-12T15:56:50Z] [org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext] [main] [296] [INFO ] Root WebApplicationContext: initialization completed in 1081 ms
[2024-09-12T15:56:50Z] [org.springframework.boot.autoconfigure.web.servlet.WelcomePageHandlerMapping] [main] [59] [INFO ] Adding welcome page template: index
[2024-09-12T15:56:50Z] [org.apache.juli.logging.DirectJDKLog] [main] [173] [INFO ] Starting ProtocolHandler ["http-nio-8080"]
[2024-09-12T15:56:50Z] [org.springframework.boot.web.embedded.tomcat.TomcatWebServer] [main] [243] [INFO ] Tomcat started on port 8080 (http) with context path '/'
[2024-09-12T15:56:50Z] [org.springframework.boot.web.embedded.tomcat.TomcatWebServer] [main] [111] [INFO ] Tomcat initialized with port 9000 (http)
[2024-09-12T15:56:50Z] [org.apache.juli.logging.DirectJDKLog] [main] [173] [INFO ] Initializing ProtocolHandler ["http-nio-9000"]
[2024-09-12T15:56:50Z] [org.apache.juli.logging.DirectJDKLog] [main] [173] [INFO ] Starting service [Tomcat]
[2024-09-12T15:56:50Z] [org.apache.juli.logging.DirectJDKLog] [main] [173] [INFO ] Starting Servlet engine: [Apache Tomcat/10.1.28]
[2024-09-12T15:56:50Z] [org.apache.juli.logging.DirectJDKLog] [main] [173] [INFO ] Initializing Spring embedded WebApplicationContext
[2024-09-12T15:56:50Z] [org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext] [main] [296] [INFO ] Root WebApplicationContext: initialization completed in 76 ms
[2024-09-12T15:56:50Z] [org.springframework.boot.actuate.endpoint.web.EndpointLinksResolver] [main] [60] [INFO ] Exposing 1 endpoint beneath base path '/actuator'
[2024-09-12T15:56:50Z] [org.apache.juli.logging.DirectJDKLog] [main] [173] [INFO ] Starting ProtocolHandler ["http-nio-9000"]
[2024-09-12T15:56:50Z] [org.springframework.boot.web.embedded.tomcat.TomcatWebServer] [main] [243] [INFO ] Tomcat started on port 9000 (http) with context path '/'
[2024-09-12T15:56:50Z] [org.springframework.boot.StartupInfoLogger] [main] [56] [INFO ] Started DemoApplication in 2.212 seconds (process running for 3.04)
[2024-09-12T15:56:51Z] [org.apache.juli.logging.DirectJDKLog] [RMI TCP Connection(4)-127.0.0.1] [173] [INFO ] Initializing Spring DispatcherServlet 'dispatcherServlet'
[2024-09-12T15:56:51Z] [org.springframework.web.servlet.FrameworkServlet] [RMI TCP Connection(4)-127.0.0.1] [532] [INFO ] Initializing Servlet 'dispatcherServlet'
[2024-09-12T15:56:51Z] [org.springframework.web.servlet.FrameworkServlet] [RMI TCP Connection(4)-127.0.0.1] [554] [INFO ] Completed initialization in 1 ms

Some important Spring Boot Actuator endpoints are given below. You can enter them in your web browser and monitor your application behavior.

ENDPOINTS USAGE
/metrics To view the application metrics such as memory used, memory free, threads, classes, system uptime etc.
/env To view the list of Environment variables used in the application.
/beans To view the Spring beans and its types, scopes and dependency.
/health To view the application health
/info To view the information about the Spring Boot application.
/trace To view the list of Traces of your Rest endpoints.

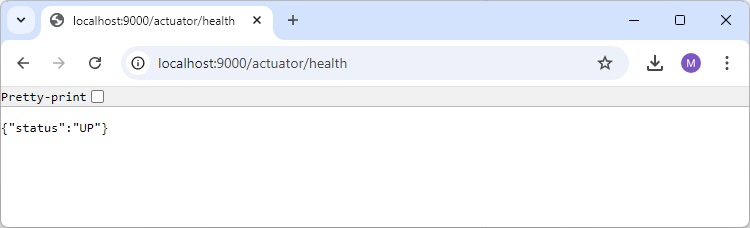

Open http://localhost:9000/actuator/health to check the status of the application as running or stopped.
