Service Registration with Eureka

Previous
Quiz
Next

In this chapter, you are going to learn in detail about how to register the Spring Boot Micro service application into the Eureka Server. Before registering the application, please make sure Eureka Server is running on the port 8761 or first build the Eureka Server and run it. For further information on building the Eureka server, you can refer to the previous chapter Spring Boot - Eureka Server

Building a Eureka Client

Eureka Client comes with the bundle of Spring Cloud. For this, we need to develop the Eureka client and run it on the default port 8080.

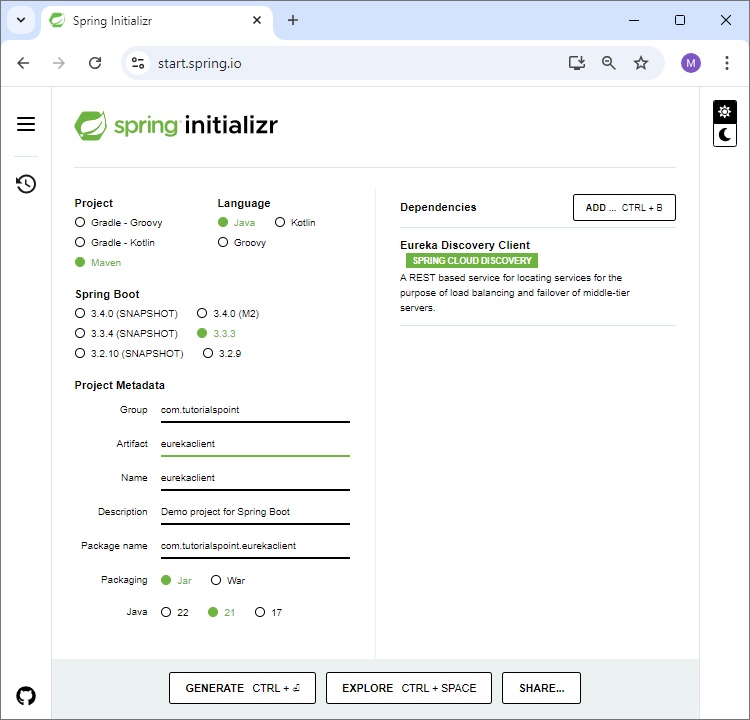

Visit the Spring Initializer homepage https://start.spring.io/ and download the Spring Boot project with Eureka Client dependency. It is shown in the screenshot below −

Build Eureka Client

After downloading the project in main Spring Boot Application class file, we need to add @EnableEurekaClient annotation. The @EnableEurekaClient annotation is used to make your Spring Boot application acts as a Eureka Client.

The code for main Spring Boot application class file is as shown below −

package com.tutorialspoint.eurekaclient;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

@SpringBootApplication
@EnableDiscoveryClient
public class EurekaclientApplication {
   public static void main(String[] args) {
      SpringApplication.run(EurekaclientApplication.class, args);
   }
}

Make sure Spring cloud Eureka client dependency is added in your build configuration file.

The code for Maven user dependency is shown below −

<dependency>
<groupId>org.springframework.cloud</groupId>
   <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>

The code for Gradle user dependency is given below −

compile('org.springframework.cloud:spring-cloud-starter-netflix-eureka-client')

The complete build configuration file is given below −

Maven - pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
   <modelVersion>4.0.0</modelVersion>
   <parent>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-parent</artifactId>
      <version>3.3.3</version>
      <relativePath/> <!-- lookup parent from repository -->
   </parent>
   <groupId>com.tutorialspoint</groupId>
   <artifactId>eurekaserver</artifactId>
   <version>0.0.1-SNAPSHOT</version>
   <name>eurekaserver</name>
   <description>Demo project for Spring Boot</description>
   <url/>
   <licenses>
      <license/>
   </licenses>
   <developers>
      <developer/>
   </developers>
   <scm>
      <connection/>
      <developerConnection/>
      <tag/>
      <url/>
   </scm>
   <properties>
      <java.version>21</java.version>
      <spring-cloud.version>2023.0.3</spring-cloud.version>
   </properties>
   <dependencies>
      <dependency>
         <groupId>org.springframework.cloud</groupId>
         <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
      </dependency>
      <dependency>
         <groupId>org.springframework.boot</groupId>
         <artifactId>spring-boot-starter-test</artifactId>
         <scope>test</scope>
      </dependency>
   </dependencies>
   <dependencyManagement>
      <dependencies>
         <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-dependencies</artifactId>
            <version>${spring-cloud.version}</version>
            <type>pom</type>
            <scope>import</scope>
         </dependency>
      </dependencies>
   </dependencyManagement>
   <build>
      <plugins>
         <plugin>
            <groupId>org.springframework.boot</groupId>
             <artifactId>spring-boot-maven-plugin</artifactId>
         </plugin>
      </plugins>
   </build>
</project>

Gradle build.gradle

buildscript {
   ext {
      springBootVersion = '3.3.3'
   }
   repositories {
      mavenCentral()
   }
   dependencies {
      classpath("org.springframework.boot:spring-boot-gradle-plugin:${springBootVersion}")
   }
}

apply plugin: 'java'
apply plugin: 'eclipse'
apply plugin: 'org.springframework.boot'

group = 'com.tutorialspoint'
version = '0.0.1-SNAPSHOT'
sourceCompatibility = 21

repositories {
   mavenCentral()
}
ext {
   springCloudVersion = '2023.0.3'
}
dependencies {
   compile('org.springframework.cloud:spring-cloud-starter-eureka-client')
   testCompile('org.springframework.boot:spring-boot-starter-test')
}
dependencyManagement {
   imports {
      mavenBom "org.springframework.cloud:spring-cloud-dependencies:${springCloudVersion}"
   }
}

To register the Spring Boot application into Eureka Server we need to add the following configuration in our application.properties file or application.yml file and specify the Eureka Server URL in our configuration.

The code for application.yml file is given below −

eureka:
   client:
      serviceUrl:
         defaultZone: http://localhost:8761/eureka
      instance:
      preferIpAddress: true
spring:
   application:
      name: eurekaclient

The code for application.properties file is given below −

eureka.client.serviceUrl.defaultZone  = http://localhost:8761/eureka
eureka.client.instance.preferIpAddress = true
spring.application.name = eurekaclient

Now, add the Rest Endpoint to return String in the main Spring Boot application and the Spring Boot Starter web dependency in build configuration file. Observe the code given below −

package com.tutorialspoint.eurekaclient;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@SpringBootApplication
@EnableDiscoveryClient
@RestController
public class EurekaclientApplication {

   public static void main(String[] args) {
      SpringApplication.run(EurekaclientApplication.class, args);
   }

   @GetMapping(value = "/")
   public String home() {
      return "Eureka Client application";
   }
}

Compilation and Execution

You can create an executable JAR file, and run the Spring Boot application by using the following Maven or Gradle commands −

For Maven, you can use the following command −

mvn clean install

After "BUILD SUCCESS", you can find the JAR file under the target directory.

For Gradle, you can use the following command −

gradle clean build

After "BUILD SUCCESSFUL", you can find the JAR file under the build/libs directory.

Now, run the JAR file by using the command as shown −

java jar <JARFILE>

Now, the application has started on the Tomcat port 8080 and Eureka Client application is registered with the Eureka Server as shown below −

Standard Commons Logging discovery in action with spring-jcl: please remove commons-logging.jar from classpath in order to avoid potential conflicts

  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/

[32m :: Spring Boot :: [39m              [2m (v3.3.3)[0;39m

[2m2024-09-11T12:46:03.672+05:30[0;39m [32m INFO[0;39m [35m19164[0;39m [2m---[0;39m [2m[eurekaserver] [           main][0;39m [2m[0;39m[36mc.t.e.EurekaserverApplication           [0;39m [2m:[0;39m Starting EurekaserverApplication using Java 21.0.3 with PID 19164
...
[2m[0;39m[36mc.n.e.registry.AbstractInstanceRegistry [0;39m [2m:[0;39m Registered instance EUREKACLIENT/DESKTOP-DTHL8BI:eurekaclient with status UP (replication=false)
[2m2024-09-11T12:54:08.159+05:30[0;39m [32m INFO[0;39m [35m19164[0;39m [2m---[0;39m [2m[eurekaserver] [nio-8761-exec-3][0;39m [2m[0;39m[36mc.n.e.registry.AbstractInstanceRegistry [0;39m [2m:[0;39m Registered instance EUREKACLIENT/DESKTOP-DTHL8BI:eurekaclient with status UP (replication=true)

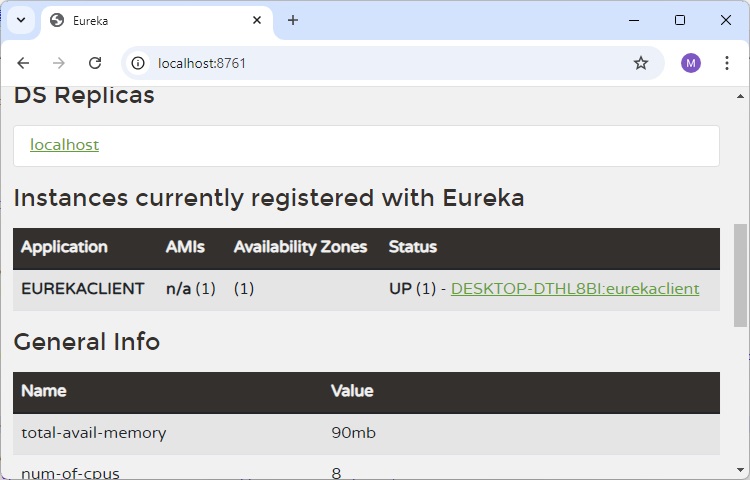

Hit the URL http://localhost:8761/ in your web browser and you can see the Eureka Client application is registered with Eureka Server.

Eureka Client Application

Now hit the URL http://localhost:8080/ in your web browser and see the Rest Endpoint output.

Eureka Client Application Output
