Cryptography − SSH Protocol



The Secure Shell (SSH) protocol is a way to send commands to a computer securely, even over an unsafe network. It uses special codes to make sure the connection is safe and private. With SSH, you can control computers from far away, just like a store owner might give instructions to employees while they're traveling.

Before SSH, older methods like Telnet could let anyone see the instructions being sent. It's like putting the store owner on speakerphone, and everyone in the store could hear private talks. But SSH keeps everything secret and safe, like having a secure shell around your conversation.

Historical Background and Development of SSH

Tatu Ylonen started developing Secure Shell in 1995 because he needed a more secure alternative to Telnet for his university's network administration. The initial version of SSH was called "Secure SHell v1," but it had major security issues that were later fixed in "Secure SHell v2."

How it works?

The SSH client connects to the SSH server to establish the connection because the protocol works on a client-server system. The SSH client initiates the connection setup process and authenticates the identity of the SSH server using public key cryptography. Strong symmetric encryption and hashing methods are used by the SSH protocol after setup to ensure the confidentiality and integrity of data transferred between the client and server.

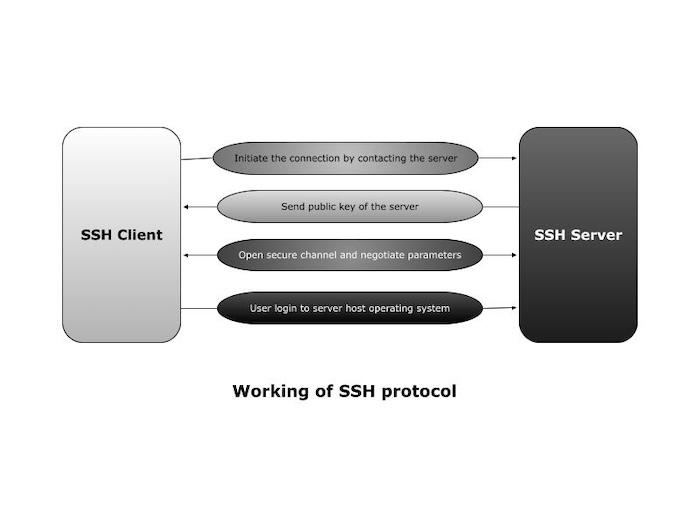

A simplified process for setting up a secure shell connection is shown in the image below.

SSH Connection

Key Components

Three essential elements are needed for an SSH connection: keys, a server, and a client. In general, the client is computer software that has been installed by the user that sends out the connection request.

Installed on a different computer, the server software receives incoming requests from clients. Digital files called keys hold the data required for secure connection and authentication on both ends.

Properties of SSH

Below are some properties of SSH we need to consider −

  • Encryption − To maintain confidentiality and stop unauthorised attacks on the system, encrypted data is transferred between the client and server.
  • Authentication − Public and private key pairs are used by SSH for authentication, which offers a higher level of security than conventional password authentication.
  • Data Integrity − During communication, SSH ensures the data integrity of the messages that are sent.
  • Tunnelling − To forward network communications over encrypted channels, we can establish secure tunnels using SSH.

SSH Port Forwarding

SSH Port forwarding is a means of securing TCP/IP connections. TCP/IP packets can be tunnelled through an SSH link, hiding the data and securing the channel from attackers. SSH port forwarding can also be viewed as a type of Virtual Private Network.

Types of SSH Port Forwarding

You can securely connect to remote resources over an encrypted connection by using SSH port forwarding. Three types of SSH port forwarding are available −

  • Local Port Forwarding − With this kind of port forwarding, you can redirect traffic from the ports on your local workstation to the ports of another machine on your network or on an external network over a secure SSH tunnel.
  • Remote Port Forwarding − With this type, you can redirect traffic from the ports of one machine to another over an SSH tunnel and an encrypted connection.
  • Dynamic Port Forwarding − With this form of port forwarding, traffic is sent to other machines on the network via the SSH server and a local SOCKS proxy server. By doing this, you can go over firewalls and use every service that the remote network has to offer.

Usage of SSH

The Secure Shell (SSH) protocol is a method to securely log in remotely from one computer to another. It offers multiple choices for strong authentication and uses robust encryption to protect the security and integrity of conversations. It is a secure alternative for insecure file transfer techniques like FTP and unprotected login protocols like telnet and rlogin.

Corporate networks use the protocol for −

  • Granting people and automated processes secure access.
  • Both automatic and interactive file transfers.
  • Sending out orders remotely.
  • Overseeing network infrastructure and additional key system elements.

Applications of SSH

Applications of Secure Shell is as follows −

1. Secure Remote Access to Servers and Devices

SSH establishes a secure and encrypted route for remote access to servers and devices. This is very helpful when the server or device is located in a separate physical location, like a data centre or cloud network.

2. Secure File Transfer with SCP or SFTP Protocols over an SSH Connection

Additionally to remote access, SSH can be used to securely transfer files over a network via SCP (Secure Copy Protocol) or SFTP (SSH File Transfer Protocol). Both protocols provide secure file transfers by encrypting the data sent between the client and server.

3. Tunnelling traffic over an encrypted channel using port forwarding

SSH tunnelling enables users to establish a secure connection between two destinations by routing communication via an encrypted channel. This can be accomplished by setting up a port forwarding rule that routes traffic from one port on a local machine to another on a remote machine.

Troubleshooting common issues with SSH connections

SSH connections, like any other technology, can fail to function properly. These issues can range from basic connectivity issues to complex configuration or security concerns.

Common error messages and solutions

One of the most typical problems with SSH is obtaining error messages indicating a connection problem. The most common issues are "connection timed out," "permission denied," and "host key verification failed." The solution to these issues varies depending on the source, but it typically involves checking network connectivity, verifying credentials or rights, or monitoring configuration settings.

Debugging techniques for diagnosing connectivity challenges

Diagnosing SSH connectivity issues can be difficult, particularly if you are unfamiliar with the technology behind it or have limited access to diagnostic tools. Thankfully, there are many methods for identifying and troubleshooting network connection issues. The first step in troubleshooting an SSH connection is to ensure basic network connections between the client and server workstations.

Tools like ping and traceroute are useful in identifying network routing issues or firewall blocking. If basic connectivity checks out but you continue to have issues with your SSH connection, you may need to evaluate your authentication settings or look into logs for more information on what is causing the issue.

Advantages of SSH

Advantages of using SSH are as follows −

  • Security − The main advantage of using SSH is the ability to set up secure connections over untrusted networks.
  • Simplicity − Setting up an SSH connection can sometimes be as simple as installing software on both sides.
  • Flexibility − Once connected via SSH, users can run a variety of operations remotely without physically accessing the servers.

Disadvantages of SSH

The disadvantages of using SSH are −

  • Performance overhead − The encryption process can result in some performance cost, particularly when sending large data over the network.
  • Complexity − Configuring SSH connections can be difficult and needs a solid knowledge of the underlying principles and protocols.
  • Security risks − SSH connections are only as safe as the keys that authenticate them. If keys are hacked or stolen, unauthorised people can gain access to critical information.

SSH vs. SSL

The major differences between SSH (Secure Shell) and SSL (Secure Socket Layer) are as follows −

S.No. SSH (Secure Shell) SSL (Secure Socket Layer)
01 SSH is a tunnelling protocol which has a username/password authentication system. SSL does not have a username or password authentication system.
02 Generally the SSH works on 22 port numbers. It works on the 443 port number.
03 SSH depends on the network tunnelling. SSL depends on the certificates.
04 This is a three-stage process for server and client authentication processes. It is a digital certificate for server and client authentication.
05 It encrypts the communication between two computers on the internet. SSL encrypts the communication between browser and server.
06 SSH is appropriate and effective for securely executing commands over the internet. It transfers securely the critical data in credit cards and banking.
07 SSH uses a symmetric key algorithm to provide data confidentiality. SSL uses both symmetric and asymmetric encryption algorithms to provide data privacy.
