Asynchronous or Unclocked SR Flip-Flop

---

---

What is SR Flip-Flop?

In digital electronics, the SR flip-flop is a sequential logic circuit that have two inputs, i.e. S and R, and two outputs, i.e. Q and Q'.

The input S represent "Set" and the input R represents "Reset". The output Q is the normal output of the flip-flop, and Q' is the inverted output of the flip-flop, it is the complement of the normal output Q of the flip-flop. The SR flip flop is a one-bit storage device used in several digital electronics systems.

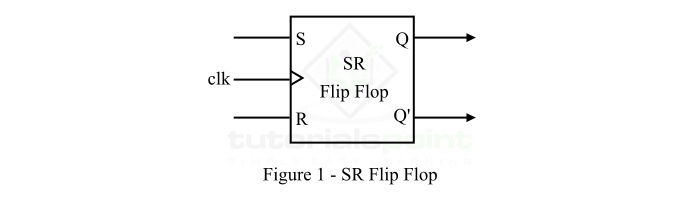

The basic block diagram of an SR flip-flop is shown in Figure-1.

Based on the presence or absence of clock signal, SR flip-flop can be classified into two types namely, synchronous SR flip-flop and asynchronous SR flip-flop. The synchronous SR flip-flop is one which generates output only when clock signal is activated. Hence, it is also known as clocked SR flip-flop.

On the other hand, an asynchronous SR flip-flop is one whose output is available at any time the inputs are applied to the circuit. Asynchronous SR flip flop is also known as unclocked SR flip-flop because its output is not controlled by the clock signal, but only controlled by inputs applied.

As the title of this article implies, here we shall only talk about asynchronous or unclocked SR flip flop.

What is Asynchronous SR Flip Flop?

An asynchronous SR flip flop, also called unclocked SR flip-flop or simply SR latch, is a sequential logic circuit which is used to store one bit binary information. It has two inputs and two outputs. The inputs are S (represents "Set" input) and R (represents "Reset" input) of the flip-flop. The first output is Q which is called normal output of the flip-flop, and another output is Q', which is called complemented output.

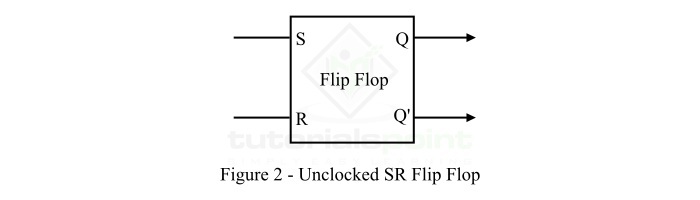

The block diagram of an asynchronous or unclocked SR flip-flop is shown in Figure-2.

The unclocked or asynchronous SR flip flop can be constructed by using two cross coupled NOR gates or NAND gates.

Let us now discuss each construction (using NOR gates and using NAND gates) of the SR flip-flop along with their operation and truth table.

Asynchronous SR Flip-Flop using NOR Gates

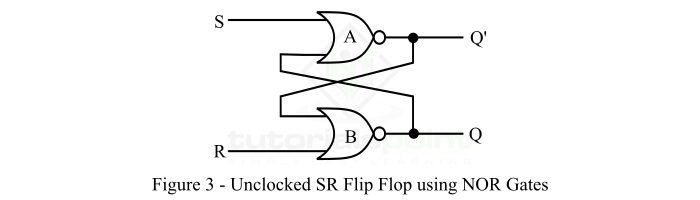

As mentioned earlier, the unclocked SR flip flop can be constructed by using two cross-coupled NOR gates as shown in Figure-3.

It has two inputs namely S (Set) and R (Reset), and two outputs namely Q (Normal output) and Q' (Inverted output).

This asynchronous SR flip flop for different possible combinations of inputs S and R operates as described as below −

• When S = 0 and R = 0 − In this case, the inputs to both NOR gates are logic 0. Hence, there is no effect on the output of the circuit. As a result, the outputs remain in their previous states. This condition of the unclocked SR flip flop is called "No Change" or "Hold Condition".
• When S = 1 and R = 0 − In this case, the output of the NOR gate A will become zero because the input S is logic 1. As a result, both inputs of the NOR gate B become logic 0, and thus, the output of the NOR gate B is logic 1 making Q equal to 1. This is called "set condition" of the unclocked SR flip flop.
• When S = 0 and R = 1 − In this case, the output of the NOR gate B will become zero because the input R is logic 1, i.e. Q = 0. As a result, both inputs of the NOR gate A become logic 0, and thus, the output of the NOR gate A is logic 1 making Q' equal to 1 and Q = 0. This is called "reset condition" of the unclocked SR flip-flop.
• When S = 1 and R = 1 − This is called "forbidden condition or invalid state" of the SR flip-flop, because this combination of inputs forces the output of both NOR gates to become logic 0, which is not possible.

Truth Table of SR Flip Flop

The truth table of unclocked SR flip flop based on the above described operation is given below.

Asynchronous SR Flip-Flop using NAND Gates

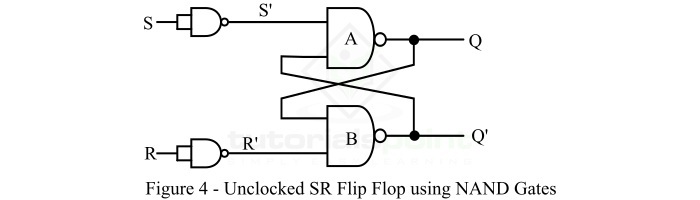

We can also implement the unclocked SR flip-flop by using two cross coupled NAND gates. The asynchronous SR flip flop using NAND gates is shown in Figure-4 below.

It can be seen that the asynchronous SR flip flop is an active low input SR flip flop. Now, let us discuss the working of the asynchronous SR flip flop for different possible input combinations.

• When S = 0 and R = 0, i.e. S' = 1 and R' = 1 − In this case both inputs i.e. S' and R' are Logic 1, thus the output remains in previous state. This is called hold state of the SR flip flop.
• When S = 0 and R = 1, i.e. S' = 1 and R' = 0 − In this case, the input S' is Logic 1 and input R' is Logic 0. Thus, the output of the NAND gate B will become logic 1. Therefore, the output of the NAND gate A, i.e. Q becomes logic 1. This is called reset state of the flip flop.
• When S = 1 and R = 0, i.e. S' = 0 and R' = 1 − In this case, the input S' is logic 0 and input R' is logic 1. As the input S' is logic 0, thus the output of the NAND gate A, i.e. Q becomes logic 1. This is called set state of the SR flip flop.
• When S = 1 and R = 1, i.e. S' = 0 and R' = 0 − In this case, both inputs are logic 0, i.e., outputs of both NAND gates must be logic 1 which is not allowed because the outputs must be complement of each other. This is called forbidden or invalid state of the flip flop.

Truth Table of Asynchronous SR Flip Flop using NAND Gates

Based on this discussion, we can derive the truth table of the asynchronous SR flip flop realized using NAND gates.

This is all about Asynchronous or Unclocked SR Flip Flop in digital electronics.
