Electrical Machines - Metadyne
Metadyne is a cross-field machine. The cross-field machines are special DC machines having an additional set of brushes on the direct-axis or d-axis. This arrangement of brushes enables the use of armature MMF to provide most of the excitation and achieve high power gains.
Construction and Working of Metadyne

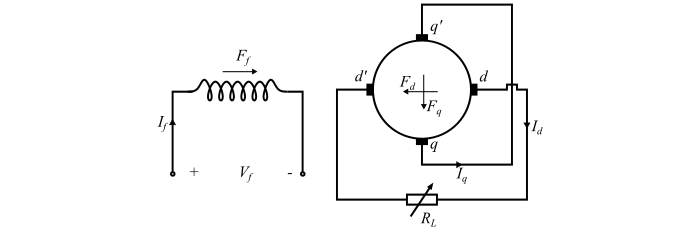

An ordinary DC generator can be converted into a metadyne by providing an additional pair of brushes on the direct-axis or d-axis (see the figure). The brushes lie on the quadrature axis or q-axis are short-circuited and the output of the machine is obtained from the d-axis brushes. The stator consists of a control field winding. A field current If flows through the control field winding.

When the rotor of the machine is rotating at a constant speed, the MMF of the control field winding (Ff) induces an EMF Eq between the q-axis brushes qq'. This induced EMF is given by,
$$\mathrm{E_{q} \:=\: K_{qf}I_{f} \:\:\:\dotso\: (1)}$$
Where, Kqf is a constant.
As the brushes qq' are short circuited, a q-axis armature current (Iq) flows and establishes q-axis MMF (Fq). Since the impedance of the short-circuited path is very low, therefore, only a small field current (If) in the control field winding will produce a much larger q-axis armature current. The corresponding flux density wave will be centred on the q-axis. Due to commutator action, this magnetic field is stationary in space. An EMF is induced in the armature by its rotation in the stationary q-axis flux. This generated EMF appears across the daxis brushes dd' and is given by,
$$\mathrm{E_{d} \:=\: K_{dq}\:I_{q} \:\:\:\dotso\: (2)}$$
Where, Kdq is a constant.
Now, if a load of resistance RL is connected across the d-axis brushes, the daxis armature current (Id) will flow through the load. This current produces d-axis MMF (Fd). According to the Lenz's law, the d-axis MMF (Fd) opposes its cause of production, that is the control field MMF (Ff).
Each stage of the generation of voltage produces a current whose magnetic field is 90° ahead of the magnetic flux wave producing the voltage. As there are two stages of the voltage generation, thus the MMF of the d-axis output current is shifted by 90° two times, i.e., 180° and hence opposes the control field MMF (Ff). Therefore, the q-axis generated EMF becomes,
$$\mathrm{E_{q} \:=\: K_{qf}\:I_{f} \:-\: K_{qd}I_{d} \:\:\:\dotso\: (3)}$$
If the magnetic saturation is neglected and the speed of the machine is assumed to be constant, then Kqd is a constant.
For a given control field MMF (Ff) and load resistance, the steady state values of Id and Iq are reached.
From Eqn. (3), it can be seen that any increase in current Id decreases the value of EMF Ed. This in turn reduces the current Id. Therefore, Ed and Id are decreased. Hence for a given value of control field excitation current (If), the d-axis output current (Id) remains constant over a wide range of load variation. Thus, the above discussion shows that a metadyne behaves as a constant current generator.
Applications of Metadyne
Metadynes were mainly used in the following applications −
- To supply DC power to process control motors
- To supply the excitation systems of large AC generators
- In traction systems and Ward-Leonard speed control systems, etc.
At present, metadynes are not manufactured and are replaced by solid state power amplifiers.
