Three-phase Autotransformer



Three-phase Star-connected Autotransformer

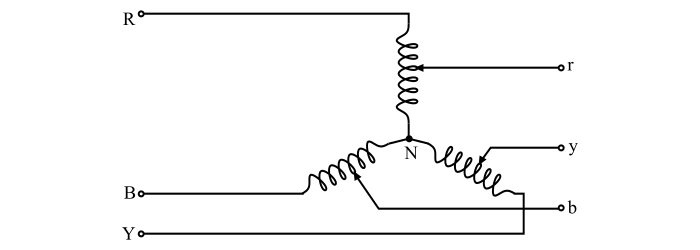

A three-phase star-connected autotransformer is shown in the figure. The three-phase autotransformers are used for small ratios of transformation.

Three-Phase Autotransformer Function1

In practice, the star connected three-phase autotransformers are used and the delta connected autotransformers are avoided. The primary application of three phase autotransformers is for interconnecting two power systbs of different voltage levels such as 66 kV to 132 kV power systbs, 110 kV to 220 kV power systbs, 220 kV to 400 kV power systbs etc.

Numerical Example

A three-phase star-connected autotransformer supplies a balanced three-phase load of 100 kW at 380 V and at 0.85 power factor lagging. If the supply voltage is 440 V, Calculate the winding currents as well as the input and output line currents. Neglect the excitation current and the internal voltage drops in the transformer.

Solution

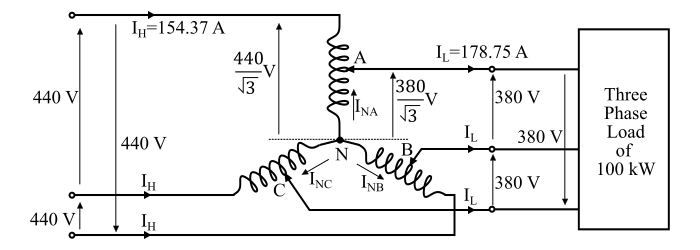

The connection diagram of the given autotransformer is shown in the figure.

Three-Phase Autotransformer Function2

The three-phase power is given by,

$$\mathrm{P \: = \: \surd 3 \: V_{L} \: I_{L} \: \cos \: \phi}$$

$$\mathrm{\therefore \: I_{L} \: = \: \frac{P}{\surd 3 \: V_{L} \: \cos \: \phi} \: = \: \frac{100 \: \times \:10^{3}}{\surd 3 \: \times \: 380 \: \times \: 0.85}}$$

$$\mathrm{\Rightarrow \: I_{L} \: = \: 178.75 \: A}$$

Thus, the output line current of the given three-phase autotransformer is 178.75 A.

As the losses are neglected, therefore,

$$\mathrm{\text{Input VA per Phase} \: (V_{H}I_{H}) \: = \: \text{ Output VA per Phase } \: (V_{L}I_{L})}$$

$$\mathrm{\Rightarrow \: \frac{440}{\surd 3} \: \times \: I_{H} \: = \: \frac{380}{\surd 3}\: \times \: I_{L}}$$

$$\mathrm{\Rightarrow \: I_{H} \: = \: \frac{380}{440} \: \times \: 178.75 \: = \: 154.37\:A}$$

Thus, the input line current of the given three-phase autotransformer is 154.37 A.

Now, the currents flowing from neutral point (N) to tapping points A, B and C are given by applying KCL at respective tapping point, thus,

$$\mathrm{I_{NA} \: = \: I_{NB} \: = \: I_{NC} \:= \: I_{L} \: - \: I_{H} \: = \: 178.75\: - \:154.37\: = \: 24.38\:A}$$

Therefore, the currents flowing in the windings of the given transformer are equal to 24.38 A.
