Text Clipping in Computer Graphics

---

---

Text clipping, as the name suggests, is the process of removing portions of text or strings that extend beyond the defined boundary or the viewport. In this chapter, we will present in detail how text clipping works. In addition, we will see the three primary methods used for text clipping, and walk through examples to clarify how each method works.

What is Text Clipping?

Text clipping is the process of removing parts of a string of text that fall outside the boundaries of a window or viewport. So it only to display the text that fits within the defined region and eliminate the text outside of it. So when a text is rendered on a screen, the part of the text that doesnt fit inside the window is clipped off and not displayed.

Methods of Text Clipping

There are three main methods used for text clipping in computer graphics:

• All and None String Clipping
• All and None Character Clipping
• Text Clipping

Each of these methods works differently, depending on whether we are dealing with entire strings or individual characters.

1. All and None String Clipping

In the All and None String Clipping method is the simplest method. Here the entire string of text is either accepted or rejected based on whether it fits entirely inside the clipping window. If the entire string is inside the window, it is displayed. However, if any part of the string extends beyond the boundary, the entire string is removed, even if most of it is inside the window.

Example

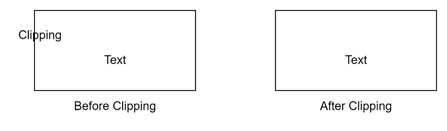

Consider a clipping window and two text strings, Text and Clipping. The Text is fully inside the window, so it is displayed. Clipping, however, has part of the text outside the window. Even though most of the text is inside, the entire string will be removed because of the partial overlap.

In this case, only the string that is fully within the boundary (Computer) remains visible.

2. All and None Character Clipping

The All and None Character Clipping method works at the character level instead of the string level. In this method, each individual character in the string is checked to see if it is fully inside the clipping window. If a character is entirely inside, it is displayed. However, if a character is partially or fully outside the window, it is removed. Unlike string clipping, this method allows some characters of the string to remain visible while others are clipped.

Example

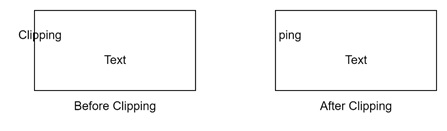

Consider the same example, here Clipping is cut with character level.

In this example, the characters that are fully inside the window remain, while the characters that are partially or fully outside the window are removed.

3. Text Clipping

The third method, Text Clipping, is more refined. In this method, only the part of the character that is inside the window is displayed, while the portion of the character that is outside the window is clipped. Unlike All and None Character Clipping, Text Clipping allows part of a character to be displayed if it crosses the window boundary. This method is particularly useful when you need a precise rendering of text that is partially inside the window.

Understanding the Difference Between Methods

Each method of text clipping has its own advantages, depending on the use case. Here is a comparison of the three methods:

• All and None String Clipping is useful when we want to either keep the entire text or remove it if any part of it is outside the window. It is an all-or-nothing approach.
• All and None Character Clipping is more flexible, as it checks each character individually and allows characters inside the window to remain while clipping the ones outside.
• Text Clipping offers the highest level of precision. It clips only the portions of characters that are outside the window, allowing for a cleaner and more controlled rendering of text.

Examples of Use Cases

All and None String Clipping might be used in applications where exact placement of entire strings is important, such as in text-based diagrams or graphical presentations. In these cases, partial strings might not make sense, and displaying them would cause confusion.

All and None Character Clipping is useful in text editors or word processors, where each character needs to be treated separately. If a character does not fit inside the window, it is removed, but the rest of the string remains visible.

Text Clipping is ideal for situations where even partial characters need to be displayed, such as in advertisements, graphics design, or when text is used in artistic presentations. In these cases, it's important to display as much of the text as possible, even if parts of individual characters are clipped.

Conclusion

In this chapter, we covered the concept of Text Clipping in Computer Graphics. There are three types of text clipping. We understood how it works and how different methods are applied to clip the text within a defined window. We explained in detail the "All and None String Clipping", "All and None Character Clipping", and "Text Clipping". Each method offers a different approach to handling text that lies partially outside the clipping window.
